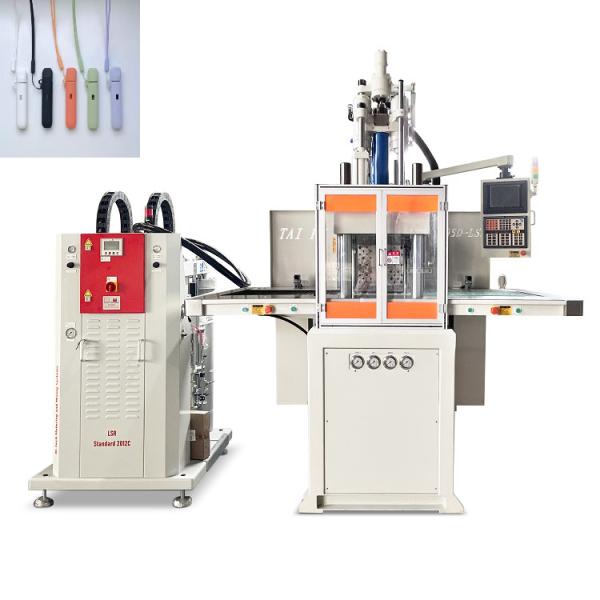

Energy Saving LSR Injection Molding Machine For Electronic Cigarette Silicone Shell
The disc or double slide plate design (one upper and two lower moulds)makes it more convenient to take and place parts, and also makes use of the pause time of LSR thermosetting forming for operator to do another work of picking/placing and cleaning moulds, which greatly increases the production efficiency.
Other wise, this type is equipped with German 2KM liquid silicone feeding system. And eletrothermal temperature conture of mutil-stage precision die.
1.Technology parameters
| Part Model | UNIT | TFV4-85SD | TFV4-120SD | TFV4-160SD |
| INJECTION UNIT | | | Z8 | Z12 | Z16 |
| Screw stroke | mm | 140 | 160 | 200 |
| Screw Diameter | mm | 32 | 36 | 40 | 36 | 40 | 45 | 45 | 50 | 55 |
| Theoretical Injection Volume | cm3 | 113 | 143 | 176 | 163 | 201 | 254 | 318 | 393 | 475 |
| Injection Weight(PS) | g | 105 | 133 | 164 | 151 | 187 | 237 | 296 | 365 | 442 |
| oz | 3.69 | 4.67 | 5.77 | 5.34 | 6.60 | 8.35 | 10.43 | 12.88 | 15.59 |
| Max.Injection Pressure | Mpa | 228 | 180 | 146 | 222 | 180 | 142 | 218 | 177 | 146 |
| kgf/cm2 | 2331 | 1842 | 1492 | 2269 | 1838 | 1452 | 2226 | 1803 | 1490 |
| Injection Rate | cm3/s | 100 | 126 | 156 | 128 | 158 | 200 | 167 | 206 | 249 |
| Max Injection Speed | mm/s | 124 | 126 | 105 |
| Screw Speed Rotation | r.p.m | 10~280 | 10~280 | 10~280 |
| Positioning ring diameter | mm | 120 | 120 | 120 |
| Nozzle Out From Platens | mm | ≥45 | ≥45 | ≥45 |
| CLAMPING UNIT | Clamping Force | kN(tf) | 833(85)/980(100) | 1176(120) | 1568(160) |
| Clamping Stroke | mm | 250 | 280 | 300 |
| Min.Mold Thickness | mm | 230(310) | 280(380) | 300(400) |
| Max.Opening | mm | 480(560) | 560(660) | 600(700) |
| (L*W)Distance Between Tie Bars | mm | 660*350 | 760*380 | 860*420 |
| (L*W)Max.Mould Size | mm | 500*475 | 600*540 | 630*630 |
| (L*W)Skate size | mm | 1120*500 | 1290*560 | 1400*650 |
| QTY of Ejector | pcs | 3 | 3 | 5(呈十字分布) |
| Top bar spacing | mm | 80 | 80 | 100 |
| Ejector Distance | mm | 100 | 100 | 110 |
| Ejector Force | kN(tf) | 26.5(2.7) | 45(4.6) | 45(4.6) |
| OTHERS | System Pressure | Mpa(kgf/cm2) | 13.7(140)/17.2(175) | 13.7(140) | 13.7(140) |
| Oil Tank Capacity | L | 280 | 340 | 450 |
| Electric Power | KW | 15+2.2/18+2.2 | 18+2.2 | 22+2.2 |
| Heater Power | KW | 7.0 | 10.7 | 13.7 |
| Machine Dimensions | L*W | m | 2.1*1.9 | 2.4*2.25 | 2.5*2.4 |
| H | m | Min:2.8(Max:3.5) | Min:3.3(Max:4.1) | Min:3.7(Max:4.6) |
| Cooling water capacity | L/min | 40 | 50 | 50 |
| 工作台面高度+(避震脚) | mm | 1140+(70) | 1340+(70) | 1480+(80) |
| Machine Weight | ton | 4.3 | 7.0 | 10.8 |
