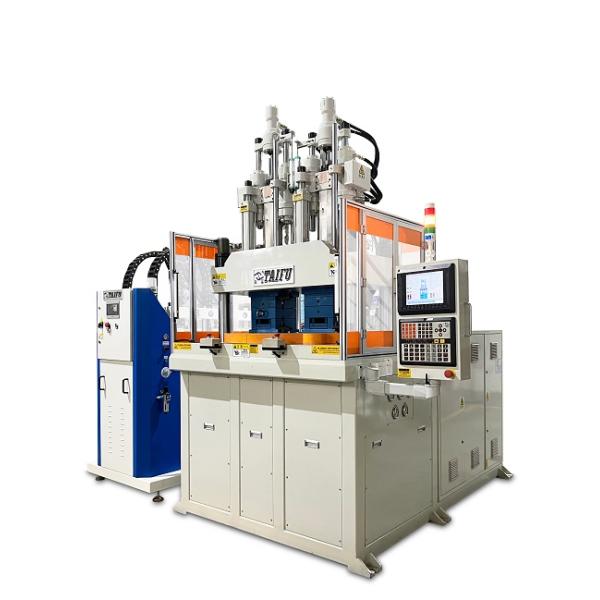

120 Ton Two-Color LSR Silicone Injection Molding Machine With Rotary Table
It is available to customize machines to meet your...
Liquid two-color silicone products mainly refer to liquid silicone products with two different colors or two different hardnesses. At present, liquid two-color silicone products usually include silicone teethers, silicone earplugs, silicone watch bands, silicone laryngeal masks, silicone bracelets, etc. Liquid silicone two-color products are popular with consumers because of their various colors and hardnesses. The liquid silicone machine developed by Taifu can produce two-color liquid silicone products. There are two different production processes based on the structure, shape and size of the product:
- Two-step molding process: Two-step molding refers to using a liquid silicone vertical injection molding machine to inject color or hardness, and then placing the semi-finished product into a rubber mold to form a beer. It is suitable for products with complex structures, small batches, large products, and no positioning posts.
- Two-color one-time molding: The two-color turntable silicone machine can produce liquid silicone products of two colors or two hardnesses at the same time. The mold can be divided into two upper molds and three lower molds. Two sets of molds inject different colors at the same time. The other lower mold can realize the rotation replacement function. Suitable for products of suitable size and large batches.
We can customize and develop according to the actual needs of customers and provide the most precise, efficient and economical personalized combination solutions.
1. Sepcifications:
| ITEM | UNIT | TFV4-90R2-2C | TFV4-120R2-2C | TFV4-170R2-2C |
| INJECTION UNIT |
| Screw stroke | mm | 100 | 140 | 140 |
| Screw Diameter | mm | 18 | 22 | 28 | 22 | 26 | 28 | 28 | 30 | 32 |
| Theoretical Injection Volume | cm3 | 25 | 38 | 62 | 53 | 74 | 86 | 86 | 99 | 113 |
| Injection Weight(PS) | g | 24 | 35 | 57 | 49 | 69 | 80 | 80 | 92 | 105 |
| oz | 0.83 | 1.25 | 2.02 | 1.75 | 2.44 | 2.83 | 2.83 | 3.25 | 3.69 |
| Max.Injection Pressure | Mpa | 343 | 230 | 142 | 248 | 178 | 153 | 213 | 185 | 163 |
| kgf/cm2 | 3500 | 2343 | 1446 | 2531 | 1812 | 1563 | 2170 | 1890 | 1661 |
| Screw Speed Rotation | r.p.m | 10~350 | 10~300 | 10~300 |
| Nozzle Out From Platens | mm | ≥45 | ≥45 | ≥45 |
| Heater Power | KW | 3.6 | 3.6 | 5.5 |
| CLAMPING UNIT |
| Optional shooting platform system type | name | A/B/C | A/B/C | A/B/C/D |
| Clamping Force | KN(ton) | 882((90(45*2) | 1176(120(60*2) | 1666(170(85*2) |
| Clamping Stroke | mm | 250 | 280 | 280 |
| Min.Mold Thickness | mm | 230(310) | 250(350) | 280(380) |
| Max.Opening | mm | 480(560) | 530(630) | 560(660) |
| (L*W)Max.Mould Size | mm | 310*310 | 350*350 | 420*420 |
| (D) Rotary Table Size | mm | φ910 | φ1010 | φ1200 |
| Ejector Distance | mm | 45 | 60 | 90 |
| Ejector Force | KN(ton) | 17.2(1.75) | 17.2(1.75) | 26.5(2.7) |
| OTHERS |
| System Pressure | Mpa(kgf/cm2) | 13.7(140) | 13.7(140) | 13.7(140) |
| Oil Tank Capacity | L | 330 | 460 | 650 |
| Electric Power | KW | 7.5+7.5 | 11+11 | 15+15 |
| Machine Dimensions | L*W | m | 2.1*1.8 | 2.4*2.2 | 2.6*2.4 |
| H(Excluding shock-absorbing feet) | m | Min:2.5(Max:3.4) | Min:2.8(Max:3.6) | Min:3.2(Max:4.1) |
| Cooling water capacity | L/min | 60 | 60 | 70 |
| Height of Workbench+(Excluding shock-absorbing feet) | mm | 1310+(60) | 1450+(80) | 1500+(80) |
| Machine Weight | ton | 5.2 | 7.3 | 9.5 |
2. Features:
-
Two-color injection molding capability: The liquid silicone machine has a two-color injection molding function and can produce liquid silicone products with two different colors or two different hardnesses. Through appropriate process adjustments, different color and hardness combinations can be achieved to meet the market's demand for diversified products
-
High-precision injection molding: The liquid silicone machine adopts an advanced injection molding control system, which can accurately control parameters such as injection speed, pressure, and temperature to achieve a high-precision injection molding process. This helps ensure the dimensional accuracy and appearance quality of the product.
-
Stability and reliability: The liquid silicone machine has stable injection process control and reliable mechanical structure design, which can ensure that the liquid silicone products produced have consistent quality and performance. It can maintain stable production efficiency and quality during long-term operation.
3. Machine Pictures:
4. Applications:
5. FAQ:
Q: Why is the mold not resistant to aging?
A: In the process of making liquid two-color silicone machine molds, liquid silicone mold manufacturers, we can recommend that companies do not add any silicone oil. If necessary, the maximum amount of silicone oil added is not to use more than 5% to 10%. Because adding too much silicone oil will destroy the molecular weight of the silica gel, the molds developed will be resistant to acid and alkali and aging.
Q: Are you a trading company or manufacturer?
A: We are a factory located in Dongguan city-the largest industrial manufacturing area in China. All the machines are manufactured by our own employees in our own factory.
Q: How long is your delivery time?
A: Small machines are in stock. Generally, the delivery time of standard machines is 7~35 working days. For customized machines, it will be 40~60 working days.
Q: How long is the warranty time?
A: 1 year warranty for all the machines. We provide free parts for any not man-made damages and quality problems. Our technical support will accompany with you during the machines' lifetime. If machines are operated properly, it can service more than 20 years.
Q: What are your terms of payment?
A: 30%TT in advance, 70% balance before shipment. or L/C at sight.
If you are interested in our machines, please do not hesitate to CONTACT US!
