High Performance Vertical Injection Molding Machine Making Chip Integrated Circuit
It is available to customize machines to meet your...
TAIFU-Product Catalog -.pdf
Company Production -TAIFU-.pdf
TAIFU 35 Ton Standard Vertical Injection Molding Machine is a specialized machine used for turning holder. It is designed to provide accurate and safe operation, making it suitable for insert molding. The machine features a vertical direct hydraulic clamping system, which ensures precise molding and reduces production costs.
We can customize and develop according to the actual needs of customers and provide the most precise, efficient and economical personalized combination solutions.
1. Sepcifications:
| ITEMS | UNIT | TFV4-35 | | INJECTION UNIT | | Screw Diameter | mm | 22 | 28 | 32 | | Theoretical Injection Volume | cm3 | 53 | 86 | 112 | | Injection Weight(PS) | g | 49 | 80 | 104 | | | oz | 1.7 | 2.8 | 3.6 | | Max.Injection Pressure | Mpa | 248 | 153 | 117 | | | kgf/cm2 | 2530 | 1562 | 1196 | | Injection Rate | cm3/s | 44 | 71 | 93 | | Injection Speed | mm/s | 116 | | Screw Speed Rotation | r.p.m | 0~240 | | Nozzle Out From Platens | mm | ≥45 | | CLAMPING UNIT | | Clamping Force | KN(tf) | 343(35)/441(45) | | Clamping Stroke | mm | 200 | | Min.Mold Thickness | mm | 150(210) | | Max.Opening | mm | 350(410) | | (L*W)Distance Between Tie Bars | mm | 410*220 | | (L*W)Max.Mould Size | mm | 400*350 | | Table Size | mm | 560*370 | | Ejector Distance | mm | 40 | | Ejector Force | KN(tf) | 17.2(1.75) | | OTHERS | | System Pressure | Mpa(kgf/cm2) | 13.7(140) | | Oil Tank Capacity | L | 130 | | Electric Power | KW(HP) | 5.5(7.5)/7.5(10) | | Heater Power | KW | 3.6 | | Machine Dimensions | m(L*W*H) | 1.6*1.2*2.7 | | Machine Weight | tf | 1.3 | |
2. Features:
- Vertical mold-locking, vertical injection
- Occupy less space.
- Clamping is designed with a direct-pressing sub-mother type locking cylinder, which can quickly clamping and slow low-pressure clamping, and improve the service life of the mold.
- With high performance, high response and high precision multi-function industrial control computer, forming is more convenient.

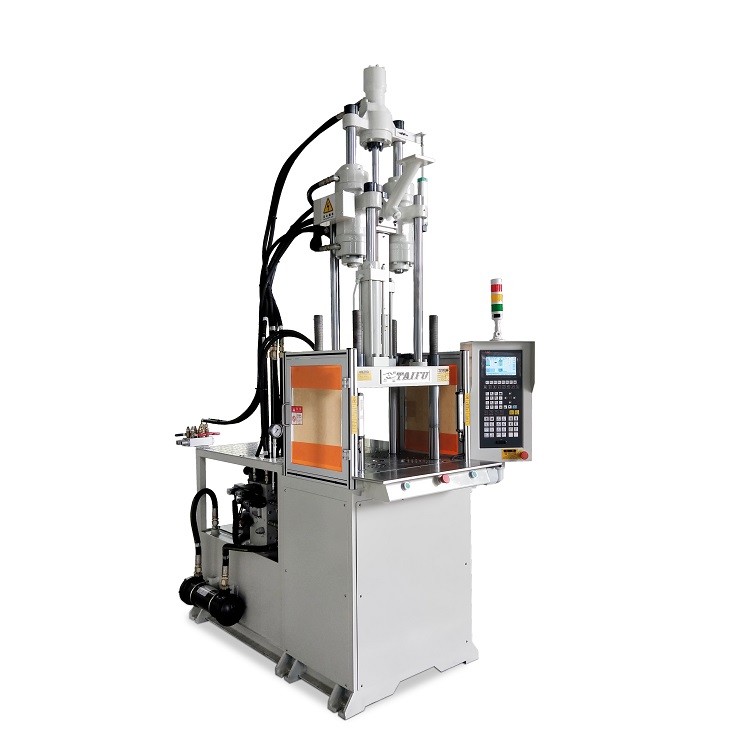

3. Machine Pictures:
4. Applications:
· WHO WE ARE
TAIFU Machinery is a professional manufacturer of vertical injection molding machines integrated with strong capabilities of R&D, manufacturing and services, with more than 15 years manufacturing experience; more than 100 employees; 15,000 square feet of manufacturing floor spaces and with facility in the Dongguan city, Guangdong province, China. We are certified by ISO9001, CE and patents 20 inventions.
We aims to supply quality products and excellent services to create value for customers on the basis of integrity, innovation, and win-win cooperation. TAIFU Machinery will be your most valuable and reliable partner in business.
· OFFICE AREA
We have 15,000 square feet of manufacturing floor space and with facilities in China. All the machines are manufactured by our own employees in our own factory.
· Parts processing center
- Machine assembly workshop
- Finished product machine shop
- PHOTOS OF DIFFERENT EXHIBITIONS
We products and delivers more than 2,000 sets of vertical injection molding machines annually. All the machines will be packed well before shipment.
We provide one-stop solutions of plastic injection molding from raw material to automation, trying to create more values for our customers.
For more than 15 years, we have recognized our customers as long-term partners, growing together. Take advantage of this global strength, and grow with us as we grow with you.
There are wide range of vertical plastic injection molding machines (thermoplastic, rubber) we provide, including Rotary table vertical injection molding machine, Bakelite machine, BMC Machine, LSR silicone injection molding machine, C-type vertical injection molding machine, etc. Not only can we provide standard machines, but we are able to also customize machines to meet your unique needs.
There are wide range of vertical plastic injection molding machines (thermoplastic, rubber) we provide, including Rotary table vertical injection molding machine, Bakelite machine, BMC Machine, LSR silicone injection molding machine, C-type vertical injection molding machine, etc. Not only can we provide standard machines, but we are able to also customize machines to meet your unique needs.
Your Professional Vertical Injection Molding Machine Manufacturer-TAIFU
We are ready to provide a well-built, high-performance products. Contact Us Now!
5. FAQ:
Q: What are the advantages of the machine ?
A: The machine has strong applicability, such as electronic parts,electrical parts,medical supplies,stationery supplies,sports goods,hardware and plastics,auto parts,ect.
Q: Are you a trading company or manufacturer?
A: We are a factory located in Dongguan city-the largest industrial manufacturing area in China. All the machines are manufactured by our own employees in our own factory.
Q: How long is the warranty time?
A: 365 days warranty for all the machines. We provide free parts for any not man-made damages and quality problems. Our technical support will accompany with you during the machines' lifetime. If machines are operated properly, it can service more than 20 years.
Q: What are your terms of payment?
A: 30%TT in advance, 70% balance before shipment. or L/C at sight.
Q: How long is your delivery time?
A: Small machines are in stock. Generally, the delivery time of standard machines is 7~35 working days. For customized machines will be 40~60 working days.
If you are interested in our machines, please do not hesitate to CONTACT US!
