35 Ton Vertical Injection Molding Machine For Bakelite thermoset material
It is available to customize machines to meet your...
Taifu Machinery Co., Ltd. manufactures bakelite and BMC injection molding machines. Bakelite and BMC injection molding products are widely used in various types of kitchen utensils, mechanical and electrical appliances, home appliance accessories, etc. The company has a strong engineering and technical team to meet customers' various bakelite needs. processing needs.
The model we have TFV4-35/45/55/85/120/200/250/300...
1. Sepcifications:
| | UNIT | TFV4-35SD | TFV4-55SD | TFV4-85SD |
| INJECTION UNIT | Screw stroke | mm | 140 | 140 | 140 |
| Screw Diameter | mm | 22 | 26 | 28 | 28 | 30 | 32 | 32 | 36 | 40 |
| Theoretical Injection Volume | cm3 | 53 | 74 | 86 | 86 | 99 | 113 | 113 | 143 | 176 |
| Injection Weight(PS) | g | 49 | 69 | 80 | 80 | 92 | 105 | 105 | 133 | 164 |
| oz | 1.75 | 2.44 | 2.83 | 2.83 | 3.25 | 3.69 | 3.69 | 4.67 | 5.77 |
| Max.Injection Pressure | Mpa | 248 | 178 | 153 | 213 | 185 | 163 | 228 | 180 | 146 |
| kgf/cm2 | 2531 | 1812 | 1563 | 2170 | 1890 | 1661 | 2331 | 1842 | 1492 |
| Injection Rate | cm3/s | 44 | 62 | 72 | 65 | 74 | 84 | 100 | 126 | 156 |
| Max Injection Speed | mm/s | 117 | 105 | 124 |
| Screw Speed Rotation | r.p.m | 10~300 | 10~300 | 10~280 |
| Positioning ring diameter | mm | 100 | 110 | 120 |
| Nozzle Out From Platens | mm | ≥45 | ≥45 | ≥45 |
| CLAMPING UNIT | Clamping Force | KN(ton) | 343(35)/441(45) | 539(55) | 833(85)/980(100) |
| Clamping Stroke | mm | 200 | 200 | 250 |
| Min.Mold Thickness | mm | 150(210) | 180(240) | 230(310) |
| Max.Opening | mm | 350(410) | 380(440) | 480(560) |
| (L*W)Distance Between Tie Bars | mm | 410*220 | 445*255 | 520*350 |
| (L*W)Max.Mould Size | mm | 340*340 | 380*380 | 500*480 |
| (L*W)Skate size | mm | 730*360 | 915*400 | 1120*500 |
| QTY of Ejector | pcs | 1 | 1 | 3 |
| Top bar spacing | mm | _ | _ | 80 |
| Ejector Distance | mm | 100 | 100 | 100 |
| Ejector Force | KN(ton) | 26.5(2.7) | 26.5(2.7) | 26.5(2.7) |
| OTHERS | System Pressure | Mpa(kgf/cm2) | 13.7(140)/17.2(175) | 13.7(140) | 13.7(140)/17.2(175) |
| Oil Tank Capacity | L | 130 | 140 | 280 |
| Electric Power | KW | 7.5/11 | 11 | 15+2.2/18+2.2 |
| Heater Power | KW | 3.6 | 5.5 | 7.0 |
| Machine Dimensions | L*W*H | m | 1.6*1.2*2.2 | 1.8*1.3*2.32 | 2.1*1.9*3.5 |
| Cooling water capacity | L/min | 25 | 35 | 40 |
| Work Table Height | mm | 990+(60) | 1088+(60) | 1140+(70) |
| Machine Weight | ton | 1.7 | 2.2 | 4.3 |
2. Features:
- The slide plate and base plate are made of cast iron, with steel strips isolating the connecting parts and lubrication oil holes, greatly reducing slide plate wear and deformation, increasing its lifespan and accuracy
- Diversified oil circuit system designs (semi-closed, fully closed, servo, or high-speed injection) can be tailored to customer needs, with expandable program design and connection to automatic embedding and extraction equipment, achieving fully automatic operation.
- It can be expanded with computer programming and automated extraction; embedded equipment connection can achieve the design of a fully automatic machine

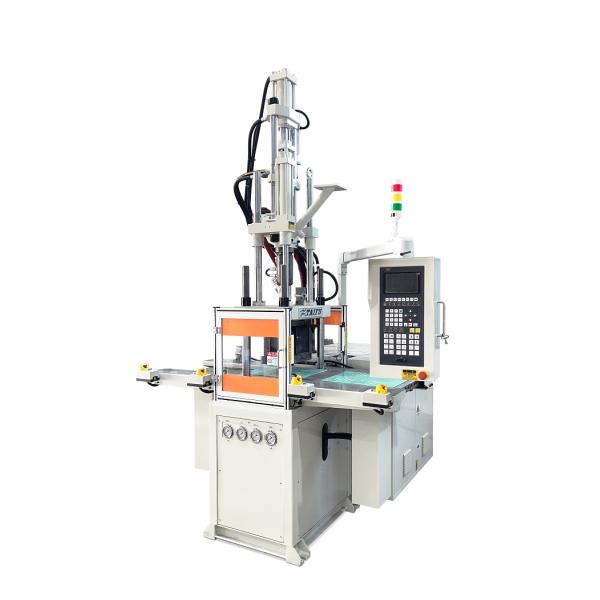

3. Machine Pictures:
4. Applications:
5. FAQ:
Q: The difference between vertical bakelite machines and ordinary vertical injection molding machines?
A: The screw barrel of the vertical bakelite machine is special. The barrel does not need to be heated. It is generally heated by an oil thermometer (to accurately control the barrel temperature). The barrel has an interlayer heating oil circulation, and the general temperature is controlled between 70 and 110 degrees. Too high will cause the bakelite powder to solidify.
Q: How long is your delivery time?
A: Small machines are in stock. Generally, the delivery time of standard machines is 7~35 working days. For customized machines, it will be 40~60 working days.
Q: How long is the warranty time?
A: 1 year warranty for all the machines. We provide free parts for any not man-made damages and quality problems. Our technical support will accompany with you during the machines' lifetime. If machines are operated properly, it can service more than 20 years.
Q: What are your terms of payment?
A: 30%TT in advance, 70% balance before shipment. or L/C at sight.
Q: What is the difference between single molding and double molding?
A: The mold may feature either one cavity or multiple cavities, each of which can be used to create a single part. As such, a single-cavity mold produces one product per cycle, while a multi-cavity mold produces more than one. Once the mold has been made, injection molding becomes an easily-replicated six-step process.
If you are interested in our machines, please do not hesitate to CONTACT US!
|
|
