Silicone Eyeglass Nose Pads Injection Molding Machine With Low Work Table 85 ton
TAIFU low-station vertical rotary table injection molding machine adopts an ergonomic work surface to make operation more convenient and safer. The minimum diameter of the turntable is 810mm and the maximum diameter is 2300mm.
The silicone eyeglass nose pads LSR (Liquid Silicone Rubber) injection molding machine with a low work table is a specific type of equipment used for manufacturing silicone nose pads for eyeglasses. These nose pads provide comfort and support to the wearer by cushioning the bridge of the nose. The machine is designed with a low work table, which provides easy access for operators to load molds, perform maintenance tasks, and monitor the injection molding process. The low work table height ensures convenience and ergonomics during operation.
The machine is equipped with a high-performance control system to provide a strong guarantee for high-quality injection molding accuracy and stability. Because of its unique rotatable disc design, the vertical turntable injection molding machine can be used with expanded automation equipment to achieve high-quality and efficient automated production of products with complex shapes and special processes. It is now widely used in auto parts and new energy industry.
1.Specification:
| ITEMS | UNIT | TFW4-85-LSR |
| INJECTION UNIT |
| Screw stroke | mm | 140 |
| Screw Diameter | mm | 32 | 36 | 40 |
| Theoretical Injection Volume | cm3 | 113 | 143 | 176 |
| Injection Weight(PS) | g | 105 | 133 | 164 |
| oz | 3.69 | 4.67 | 5.77 |
| Max.Injection Pressure | Mpa | 228 | 180 | 146 |
| kgf/cm2 | 2331 | 1842 | 1492 |
| Injection Rate | cm3/s | 100 | 126 | 156 |
| Max Injection Speed | mm/s | 124 |
| Screw Speed Rotation | r.p.m | 10~280 |
| Positioning ring diameter | mm | 120 |
| Nozzle Out From Platens | mm | ≥45 |
| CLAMPING UNIT |
| Clamping Force | KN(ton) | 833(85)/980(100) |
| Clamping Stroke | mm | 250 |
| Min.Mold Thickness | mm | 230(310) |
| Max.Opening | mm | 480(560) |
| (L*W)Distance Between Tie Bars | mm | 520*350 |
| (L*W)Max.Mould Size | mm | 500*500 |
| (L*W)尺寸Platen Size | mm | 710*540 |
| QTY of Ejector | pcs | 1 |
| Ejector Distance | mm | 50 |
| Ejector Force | KN(ton) | 26.5(2.7) |
| Other |
| System Pressure | Mpa(kgf/cm2) | 13.7(140)/17.2(175) |
| Oil Tank Capacity | L | 280 |
| Electric Power | KW | 15/18.7 |
| Heater Power | KW | 7 |
| Machine Dimensions | L*W | m | 2.0*1.5 |
| H(Excluding shock-absorbing feet) | m | Min:2.6(Max:3.3) |
| Cooling water capacity | L/min | 40 |
| Machine Weight | ton | 3.5 |
2. Features:
- The machine is designed with a low work table, which provides easy access for operators to load molds, perform maintenance tasks, and monitor the injection molding process. The low work table height ensures convenience and ergonomics during operation.
- High precision
- High efficiency

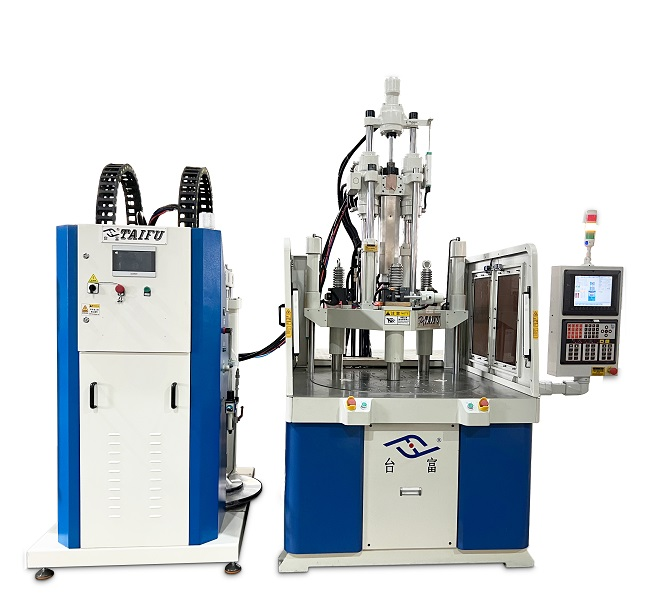

3. Machine Pictures:
4. Applications:
5. Why choose us?
1. Best product quality and most competitive price.
2. Experienced technical personnel in production.
3. Customized design and production.
4. Excellent pre-sales and after-sales services.
6. FAQ:
Q: What is the difference between silicone nose pads and Pvc nose pads?
A: PVC nose pads are rougher than silicone nose pads, while silicone nose pads have a smooth surface and are colored.
Q: Do you test all goods before delivery?
Yes, we have 100% testing before delivery
Q: How about your delivery time?
Generally speaking, it will take 20 to 45 days after receiving the advance payment. The specific delivery time depends on
Regarding your order and quantity.
Q: Packaging and shipping?
The spool is plastic-covered inside and cartoned outside. Or according to your request.
Q: What are your payment terms?
T/T 30% deposite,70%before departure.
